BMW Umhlanga

Posted on: December 11th, 2015 by Swanlite No Comments

BMW Umhlanga asked for façade lighting solution to make their dealership stand out from the rest. We achieved this effect through a Blued LED Wash light solution. The LEDs are placed at strategic positions around the building projecting light up and onto its façade. All Luminaires are controlled via a timer to ensure an efficiency.

Luminaires:

SLS/GL/FLD/28W/LED/Blue/IP65

Product Spec: 28W Blue Led Flood light, IP65 rating, 2700lm



New to the fleet

Posted on: December 8th, 2015 by KablooeyMonsters No Comments

Look out for Steven and his orange polo on the streets around town… His vehicle is the latest addition to the Swanlite branded vehicle fleet. Thanks to the team at Wicked Dips for doing a great job, we are really chuffed with the result.

The Space Player

Posted on: December 2nd, 2015 by KablooeyMonsters No Comments

Space PlayerDynamic content in the form of a multi-functional spotlight and projector system.

The Space Player realizes a new concept of “projection lighting,” utilizing projected visuals for lighting to create a wide variety of ambient lighting possibilities

Panasonic has developed the “Space Player”, a new type of lighting technology that combines the functions of traditional lighting and video projectors to create new options in spatial lighting for the ambient lighting market

https://www.vossloh-schwabe.com/en/home/products/space-player.html

http://www2.panasonic.biz/es/lighting/global/spaceplayer/example.html

THORN Urba

Posted on: December 1st, 2015 by KablooeyMonsters No Comments

urbaUrba is a LED urban lantern exclusively designed by world renowned architects, city planners and designers, Wilmotte & Industries.

Jean-Michel Wilmotte from Wilmotte & Industries says: “The task was to develop a new range of contemporary, economic, innovative and versatile luminaires respecting the environment and surroundings. Our aim was to create a contemporary design that respects but at the same time enhances the surroundings with improved quality of light. This resulted in a new type of luminaire with minimalist styling and clean lines with an original light signature that is consistent with the design and brings more visual comfort.”

Corinne Delor, Global Product Manager at Thorn, says: “Urba combines Thorn’s vision for an understated, minimalist luminaire with Wilmotte & Industries’ vision for urban lighting. The result is an elegant design with minimalist styling. Combined with contrasting colour tones and dichroic glass, Urba is sympathetic with both modern and traditional environments.”

Sophisticated by day and creating a unique lighting signature by night, Urba brings comfort and a welcoming ambience to the urban life through the quality and shape of its light emitting surface. As well as placing light precisely with no waste (ULOR=0), two dedicated optics are optimised for very low disability glare, compliant with G6 class. A version with prismatic glass is also available for pedestrian applications to limit obtrusive light significantly.

This versatile urban LED lantern is suitable for many urban applications from pedestrian and cycle lanes to minor and main urban roads. Available in two sizes up to 15 000 lumens with nine light distribution choices, Urba provides efficient LED lighting (up to 100Llm/W) to illuminate the urban landscape and fulfil EN13201 lighting classes for S, CE and Me lighting classes. With three mounting options (post top, wall or lateral mounting) and a wide choice of coordinated short and long brackets and columns, Urba is a complete and fully harmonised urban lighting solution for new and renovation, street and road projects. Urba’s integrated control options include stand-alone dimming, remote control and presence detection. Operating costs are further reduced by a long lifetime of up to 100 000 hours @B10L70.

For more information about Urba, click here.

Tangawizi Motors

Posted on: December 1st, 2015 by KablooeyMonsters No Comments

Tangawizi Motor Dealership (Richards Bay - KZN)

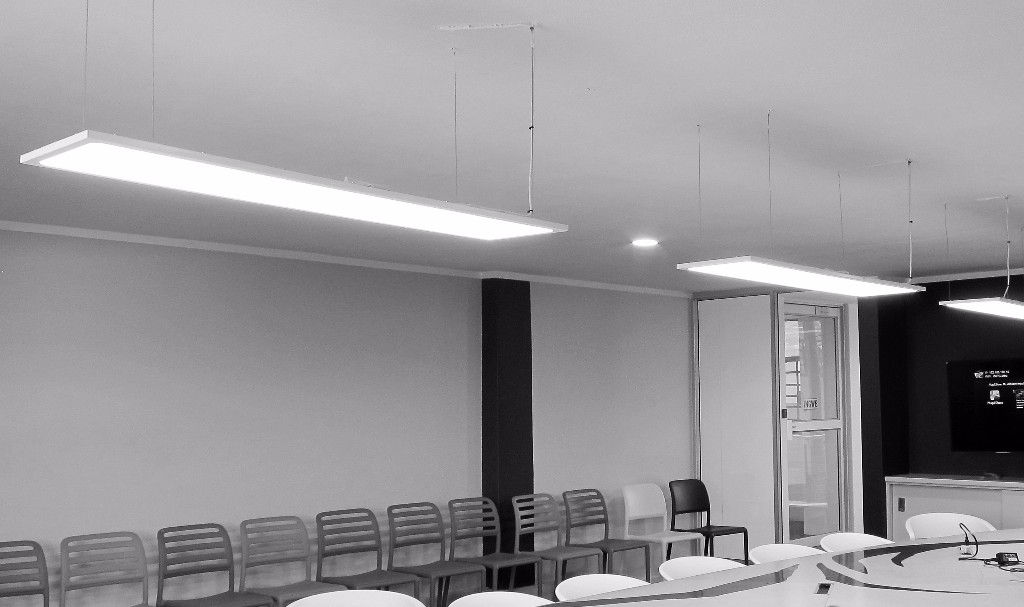

Swanlite was approached to design a comprehensive lighting solution for the prestigious Tangawizi Motors Dealership, comprising three motoring brands, Honda, Hyundai, Renault. Swanlite's design encompassed lighting requirements for new and used vehicle showrooms, offices, service workshops and perimeter lighting.

Luminaires

Thorn HIPAK LED 9300 HFI-X

Vossloh-Schwabe Pro and H series LED down lights

Venture 600 x 600 36W LED Edge lit panel

Swanlite SLS/PMOD/DP/228

Swanlite SLS/INV/DMC29/228







Africa Centre

Posted on: December 1st, 2015 by KablooeyMonsters No Comments

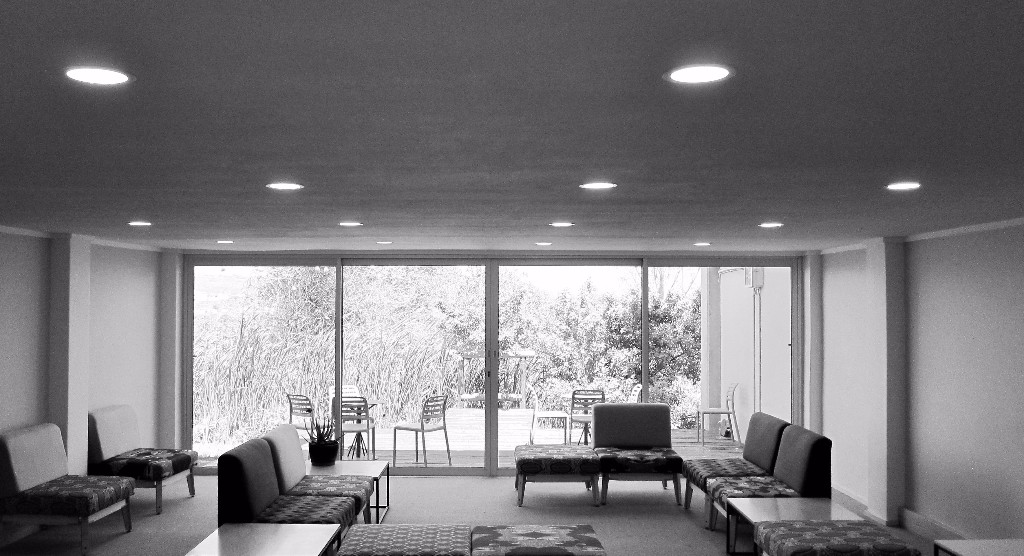

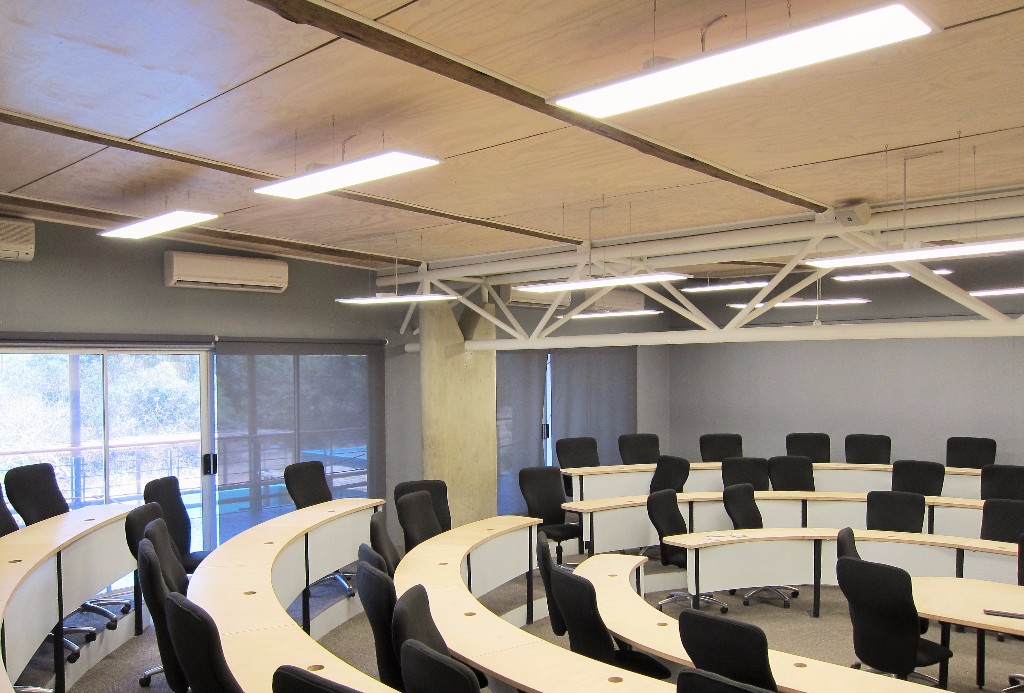

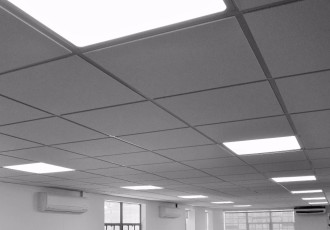

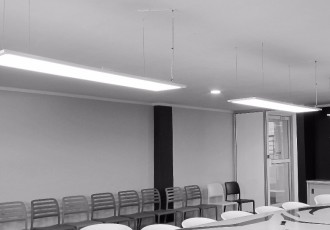

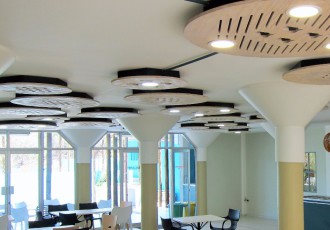

Swanlite is proud to be associated with the refurbishment of the originally established (1996)  Africa Centre for population and reproductive health in Sub-Saharan Africa. Through external fellowship, theme and grant funding, Swanlite were able to design with and supply state of the art LED lighting for the four research pod clusters.

Luminaires:

THORN Omega LED 3250HFI-X

THORN Omega LED 4000HFI-X

THORN AQUAF2 1x49W

Swanlite SLS/BHD/LED/SQR/16W

Swanlite SLS/GL/FLD/LED/28W

DSI Smart PTM SEN2 (Sensor)





Kwadukuza Street Lights

Posted on: December 1st, 2015 by KablooeyMonsters No Comments

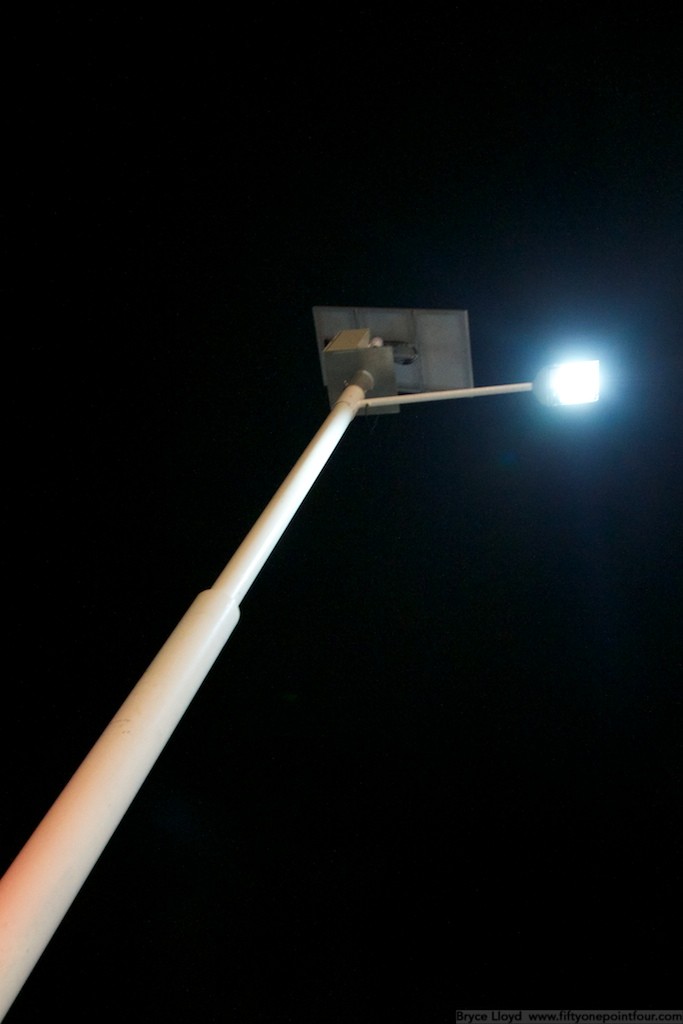

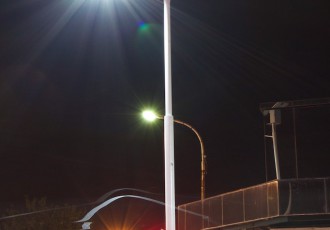

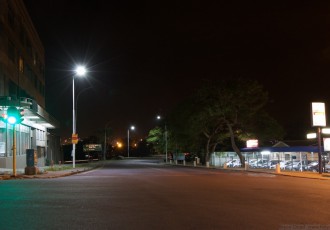

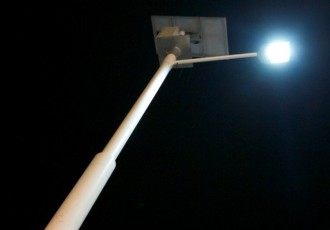

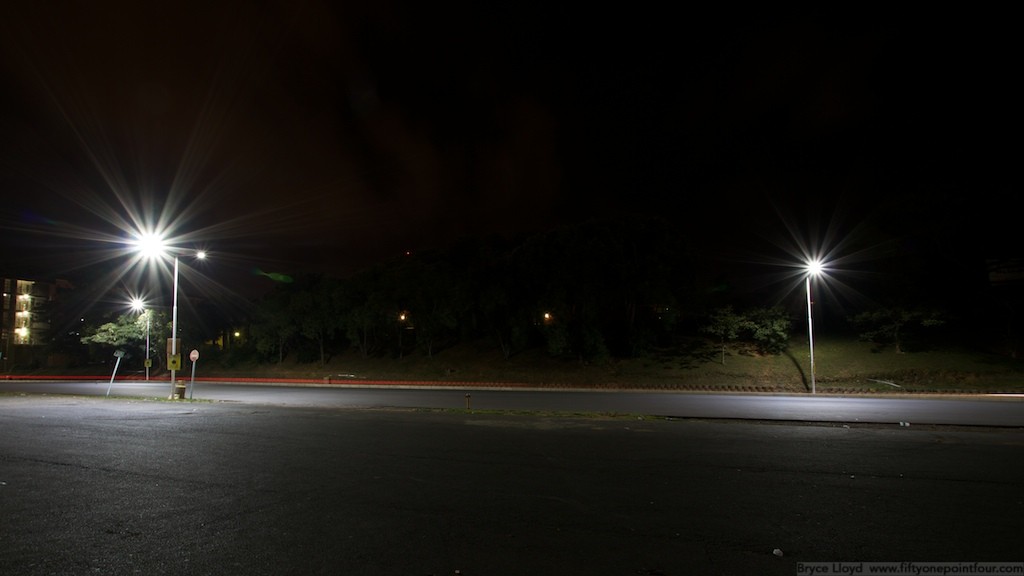

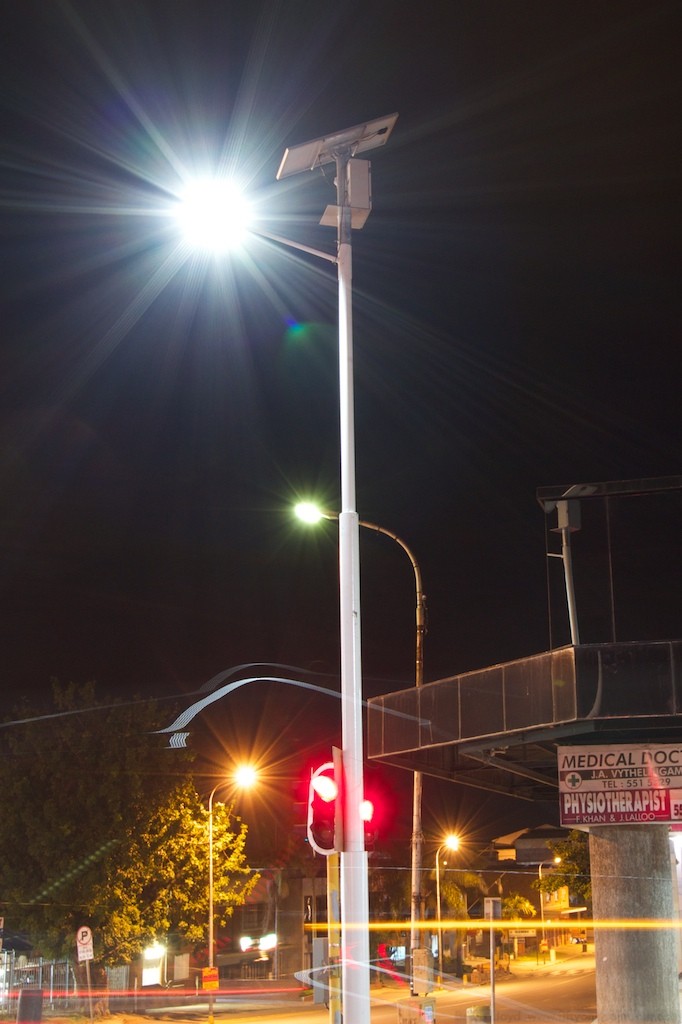

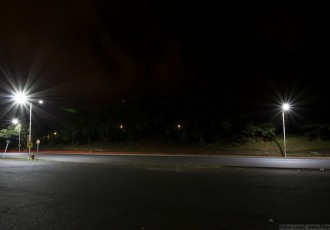

LED Street Lights with SOLAR panel

Specified an LED streetlight solution incorporating SOLAR and Battery technology. Final design made use of a combination of 80W LED Streetlights and 28W LED SOLAR street lights. The 28W SOLAR LED fittings were strategically positioned over key intersections and walkways that required continued lighting without the reliance of GRID Based power.

Luminaires:

80W LED Fitting, 9000lm, CRI=80, IP65

SLS/GL/LED/ST/80W/LED

28W LED SOLAR Package, 3000lm, CRI=80, IP65

Deep Cycle lead acid 100A/H 12V battery

Polycrystal 100W 12 Solar Panel

SLS/GL/ST/28W/SOLAR POWER

Latest THORN products

Posted on: December 1st, 2015 by KablooeyMonsters No Comments

We had the pleasure of hosting the Head of Sales for Thorn Lighting (Africa Region) for a couple of days last week. Our time was spent reviewing the latest in THORN LED product offerings, visiting project sites where we have specified THORN and ZUMTOBEL product and generally brain storming Sales strategies for 2016.  One of the stand our products from his visit was the THORN Flexity, post top LED Luminaire. With its slick design, Bi Power Configuration and 100 000hr life, this is a fitting worth looking at.

For more information visit the Thorn Lighting website
